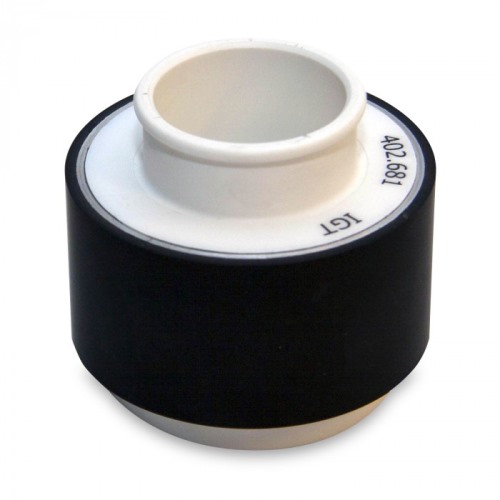

Printing disc, 35 mm black rubber disc, 65 Shore A，for conventional inks for C1
This disc is the replacement for disc 402.081, as the coated discs could no longer be manufactured!
This disc is the replacement for disc 402.081, as the coated discs could no longer be manufactured!
IGT 35mm常规印刷盘橡胶材质硬度65-IGT 402.681
| Weight: | 0.145 kg |
| Dimensions(L x W x H): | 0cm x 0cm x 0cm |
| Model: | 402.681 |
| Main application: | General prints colour matching |
| Conformance with standards/W-leaflet: | ISO 2834-1, ISO 2846-1 |
| Water bath and temperature: | — |
| Speed range and modes: | — |
| Forces: | — |
| Substrate requirements: | test method dependent |
| Interval time and number: | — |
| Printing shafts type and options: | — |
| Shaft positioning: | — |
| Lifting system: | — |
| Print length and width: | 200 x 35 mm_ |
| Printing discs: | 35 mm coated rubber disc 65 ShoreA |
| Sector positioning: | — |
| Sector type and options: | — |
| Doctoring system: | — |
| Dispensing system: | — |
| Pre-programmed tests: | — |
| Analysis options: | — |
| Interfaces: | — |
| Software updates: | — |
| Data export options: | — |
| Additional items: | — |
| Accessories: | lint free cleaning towel |
| Inks or liquids: | inks and liquids |
| Inking speeds: | — |
| Inking programs: | — |
| Top rollers: | — |
| Maintenance: | Keep clean and dry before use |
| Compatible instruments: | C1 C1-5 C1-7 Cx3 CT1 OP OP-M OP70 AIC2-5T2000 GST Amsterdam |
| Measurement range: | — |
| Light source/ power/angle: | — |
| Volume: | — |
| Shelf life: | — |
| Use life: | — |
| Description of property: | — |
| Cleaning: | White spirit, cleaning naphta, any blanket wash suitable for conventional inks and the used ink |
| Power Supply Requirements: | — |
| Guarantee: | one year on production failures |
| Space requirements: | — |
| Standard delivery time: | 10-12 weeks |
