IGT 水干扰光斑测试组件 Mottle Test Set（Water Interference Method）For AIC2-5T2000-IGT 435.000.710.059
Test set to perform Mottle tests (Water interference method) with an IGT printability tester.
Mottling is the uneven appearance, mostly in solid areas: small dark and light areas appearing in the surface of paper (board) caused by ink, paper or presswork.
Mottle is influenced by many parameters: type of ink, colour sequence, construction of printing press, speed, rubber blanket and the damping water. The most important influence however is the type of paper. Variations in the surface characteristics as absorption and smoothness play an important role in the mottle and are caused by the production process and the components in the paper.
There can be three kinds of mottle:
-
Back trap mottle: an uneven printing result, caused by uneven ink absorption of the paper.
-
Water interference mottle: an uneven printing result, caused by insufficient and uneven water absorption of the paper, followed by uneven ink absorption.
-
Ink trap mottle: an uneven printing result, caused by a wrong trapping of the ink in tack and/or viscosity and is also influenced by an uneven absorption of the ink by the paper.
Can be used in combination with the following IGT Printability testers:
-
Amsterdam 2, 5 and 6
-
AIC2-5T2000
-
AIC2-5
-
Global Standard Tester 2
For more information look at the test method information W59 Mottle, Water interference method

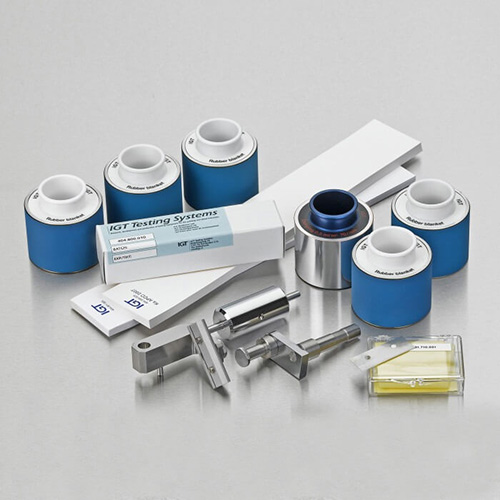

Complete set for executing the Mottle test (Water interference method).
The content of the set is depending of the IGT Printability Tester on which it will be used.
Therefor we kindly ask you to mention the name and serialnumber of the equipment for which equipment the set is intended.
|
Weight: |
|
|
Dimensions(L x W x H): |
|
|
Model: |
435.000.710.059 |
|
Standard delivery time: |
4-6 weeks |
